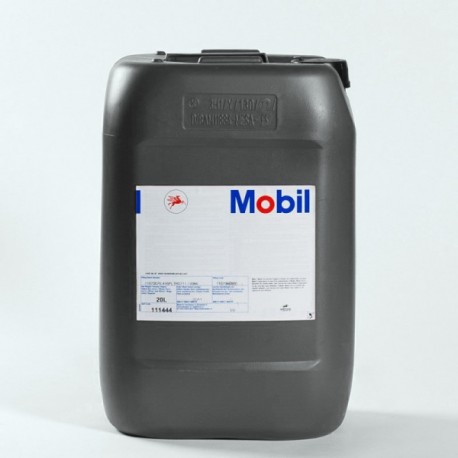

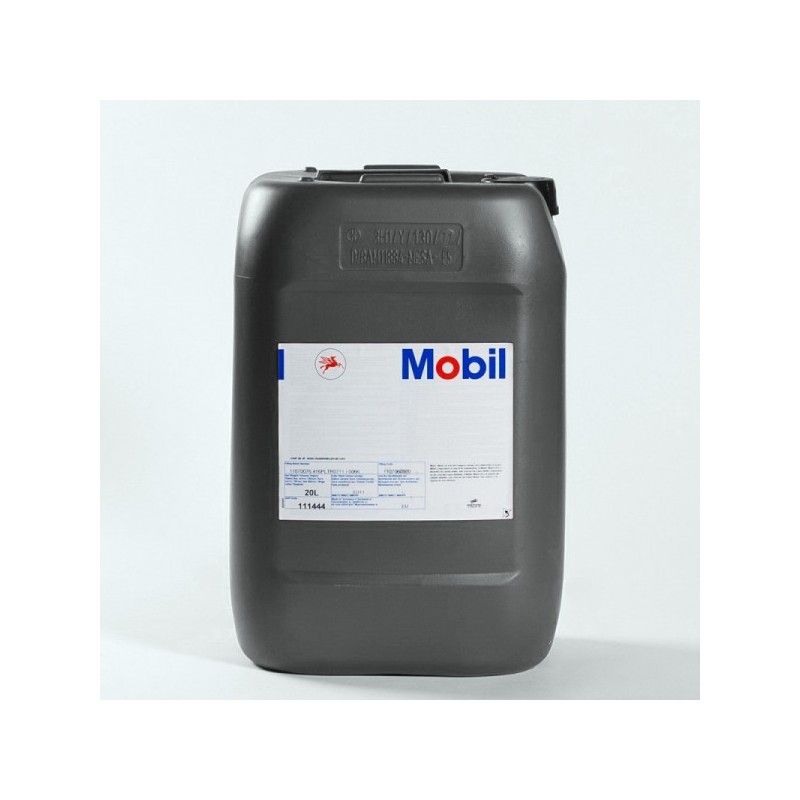

> Mobil ATF 220 20L
Mobil ATF 220 20L View larger

Mobil ATF 220 20L

New product

166,68 € tax incl.

More info

Mobil ATF 220

Automatic Transmission Fluid

Product Description

Mobil ATF 220 is a high performance, fluid for automatic transmissions in older vehicles specifying Dexron IID. It is also used as a hydraulic fluid in unique applications.



Features and Benefits

Mobil ATF 220 is formulated from high-quality conventional base oils combined with a special additive system including viscosity index improvers, antioxidants, and defoaments providing smooth and controlled friction/wear characteristics. The product provides consumers an excellent driving experience even in broad range of driving conditions in a wide variety of pre-1994 automobiles. Key features and benefits include:

Features Advantages and Potential Benefits
Good thermal and oxidation stability Resists lacquer, sludge and deposit formation to keeps transmissions clean for efficient operation over the fill life
Good anti-wear properties Meets the wear requirement to promote longer transmission life
Excellent low-temperature fluidity Assist in improved start-up and clean fast lubrication at low ambient temperatures
Effective foam control properties Smooth and lasting shift feel and reduced fluid loss in severe service operating conditions
Compatible with all common seal materials used in Type IID transmissions Maintains effective leakage control



Applications

Mobil ATF 220 is recommended for some automatic and manual transmissions in passenger cars and light trucks specifying Dexron IID level performance as well as the related power steering systems. It is also suitable for use in some special hydraulic systems in farm equipment and other installations having similar fluid requirements. It is recommended that the user consult the manufacturer's requirements. Other applications include:

  • Off-highway transmissions power steering and other hydraulic systems requiring a Dexron IID or Allison C-4 fluid.
  • Industrial hydraulic systems and components.



Specifications and Approvals

Mobil ATF 220 has the following builder approvals:
MB-Approval 236.7  X
MAN 339 TYPE V-1  X
MAN 339 TYPE Z-1  X
VOITH TURBO H55.6335.xx  X
ZF TE-ML-04D/11A/14A  X



According to ExxonMobil, Mobil ATF 220 is of the following quality level:
GM Dexron II  X
Allison C-4  X
Renk Doromat  X
Caterpillar TO-2  X
Ford ESR-M2C163-A  X
GM Type A Suffix A  X
Volvo 97340  X



Typical Properties

Mobil ATF 220
Viscosity, ASTM D 445
cSt @ 40°C 37
cSt @ 100°C 7.0
Brookfield Viscosity, ASTM D 2983
-cP @ -40°C 33,000
Viscosity Index, ASTM D 2270 153
Pour Point, °C, ASTM D 97 -44
Flash Point, °C, ASTM D 92 200
Density @15°C, kg/l, ASTM D 4052 0.870
Colour Red
