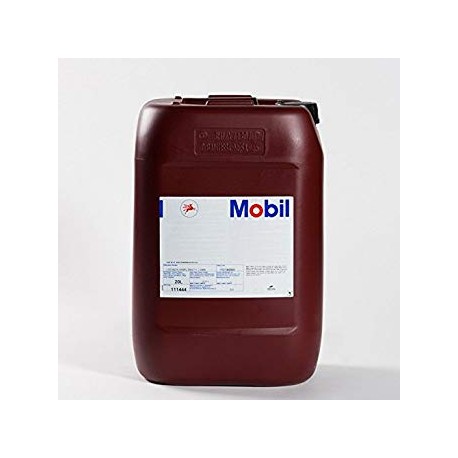

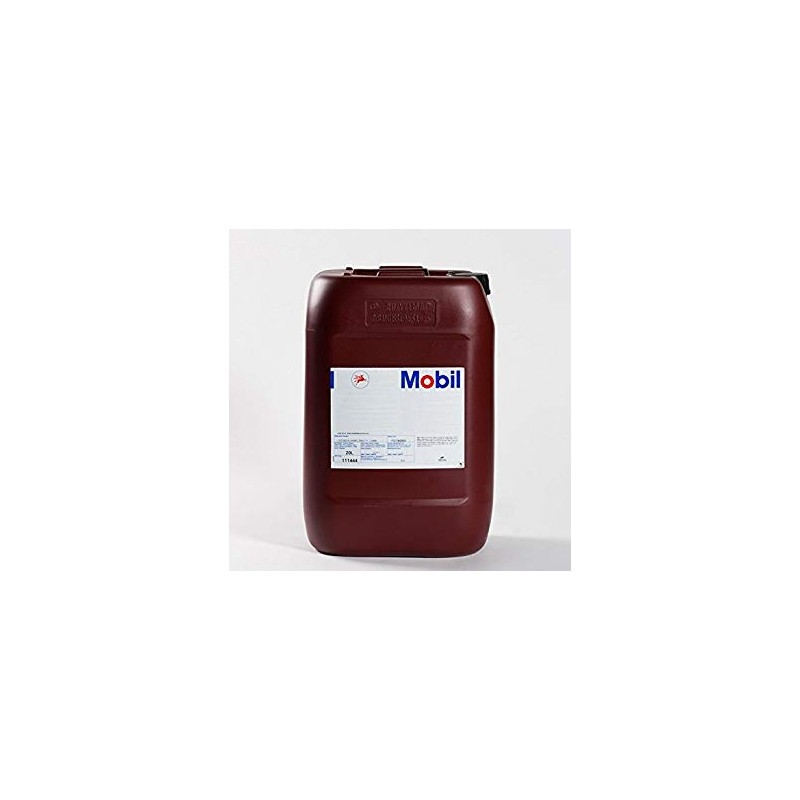

Mobil SHC 525 20L View larger

Mobil SHC 525 20L

New product

More info

Mobil SHC™ 500 Series

Hydraulic Oils

Product Description

Mobil SHC™ 500 Series oils are exceptional performance hydraulic oils formulated from synthesised, wax-free hydrocarbon base fluids combined with a carefully engineered super-stabilised additive system. They are exceptionally high quality, wide-temperature, shear-stable hydraulic oils with controlled low-temperature pumpability properties and maximised anti-wear protection for high-pressure vane, piston and gear pumps. The products exhibit very high viscosity indexes contributing to their excellent low and high temperature performance making them an excellent choice for equipment that is subjected to a wide range of start-up and operating temperatures. The Mobil SHC 500 Series oils exhibit outstanding shear stability allowing their use in high-pressure, high-temperature operating environments for extended periods of time without the loss of critical lubrication characteristics.

The Mobil SHC 500 Series oils help provide long oil/filter life and optimum equipment protection, which can reduce both maintenance and product disposal costs. They were developed in conjunction with the major OEMs to meet the stringent requirements of severe hydraulic systems using high pressure, high output pumps as well as handling the critical requirements of other hydraulic system components such as close clearance servo-valves and the high accuracy numerically controlled (NC) machine tools. These products meet some of the most rigorous performance requirements of a wide range of hydraulic system and component manufacturers, using various multi-metallurgy designs, ensuring a single product with exceptional performance characteristics in a wide range of equipment. They are designed to work with systems operating under severe conditions where high levels of anti-wear and film strength protection are needed, yet they are formulated to work where non-anti-wear hydraulic oils are generally recommended.

 EnergyEfficienc

* The energy efficiency design is a trademark of Exxon Mobil Corporation Energy efficiency relates solely to the fluid performance when compared with ExxonMobil’s standard hydraulic fluids. The technology used allows up to 6 percent increase in hydraulic pump efficiency compared with Mobil DTE 20 Series when tested in standard hydraulic applications. The energy efficiency claim for this product is based on test results on the use of the fluid conducted in accordance with applicable industry standards and protocols. Efficiency improvements will vary based on operating conditions and applications.

Features and Benefits

The Mobil SHC 500 Series hydraulic oils exhibit outstanding low and high temperature performance helping to provide an extra margin of equipment protection above and beyond the capabilities of comparable mineral oil-based products. Their excellent oxidation resistance allows extension of oil and filter change intervals while assuring exceptionally clean systems and trouble-free operation. Their high level of anti-wear properties and excellent film strength characteristics result in exceptional equipment performance that helps prevent unplanned equipment breakdowns, and maximize equipment uptime, which can enable potential improvements in production capacity. Their controlled demulsibility permits the oils to work well in systems contaminated with small amounts of water yet readily separate large amounts of water.

Features Advantages and Potential Benefits
Design-Specific Synthetic Base stock Helps extend service intervals
Cleaner system and reduced close-tolerance valve sticking compared to conventional products
Helps improve filterability
Exceptional Anti-wear Helps reduce wear of components
Helps protect systems using various metallurgy
High Viscosity Index Wide temperature range performance
Helps to ensure equipment protection at cold start-up temperatures
Helps protect system components at high operating temperatures
Outstanding Oxidation Stability Helps provide long oil and equipment life, which can extend filter life
Excellent Corrosion Protection Helps prevent internal hydraulic system corrosion
Helps reduce the negative effects of moisture in systems
Helps provide corrosion protection of multi-metallurgy component designs
Very Good Multi-metal Compatibility Helps optimize inventory requirements
Meets a Wide Range of Equipment Requirements One product can replace several helping to optimize inventory requirements and mitigate potential product misapplication
Excellent Air Separation Characteristics Helps reduce foaming and it's negative effects
Controlled Demulsibility Provides systems protection and lubrication where small quantities of moisture are present
Readily separates larger quantities of water
Innovative Keep Clean Properties Helps reduce system deposits and potential sludging
Helps protect critical components such as servo-valves, improving system response and minimizing valve sticking



Applications

  • Hydraulic systems prone to deposit build-up such as sophisticated Numerically Controlled (NC) machines, particularly where close clearance servo-valves are used
  • Systems employing multi-metal component designs
  • High pressure vane, piston and gear pumps
  • Systems where cold start-up and / or very high operating temperatures are typical
  • Where small amounts of water are unavoidable
  • In systems containing gears and bearings
  • Systems requiring a high degree of load-carrying capability and anti-wear protection
  • Applications where thin oil-film corrosion protection is an asset such as in systems containing moisture



Specifications and Approvals

Mobil SHC 500 Series has the following builder approvals: 524 525 526 527
Denison HF-0 X X X
Denison HF-1 X X X
Denison HF-2 X X X



Typical Properties

Mobil SHC 500 Series 524 525 526 527
ISO Viscosity Grade 32 46 68 100
Viscosity, ASTM D 445
cSt @ 40º C 32 46 68 100
cSt @ 100º C 6.4 8.54 11.52 15.94
Brookfield Viscosity @ -18º C, ASTM D 2983, cP 923 1376 2385 4500
Viscosity Index, ASTM D 2270 144 154 158 160
Density 15º C, ASTM D 4052, kg/L 0.852 0.8514 0.8535 0.8576
Copper Strip Corrosion, ASTM D 130, 3 hours @ 100º C 1B 1B 1B 1B
Rust Characteristics, ASTM D 665B Pass Pass Pass Pass
FZG Gear Test, DIN 51354, Fail Stage 9 10 11 11
Pour Point, ºC, ASTM D 97 -56 -54 -53 -52
Flash Point, ºC, ASTM D 92 234 238 240 243
Foam Sequence I, II, III, ASTM D 892 , ml 50/0 50/0 50/0 50/0
Demulsibility, ASTM D 1401, 54C, minutes to 3ml emulsion 20 20 20
Demulsibility, ASTM D 1401, 82C, minutes to 3ml emulsion       20
