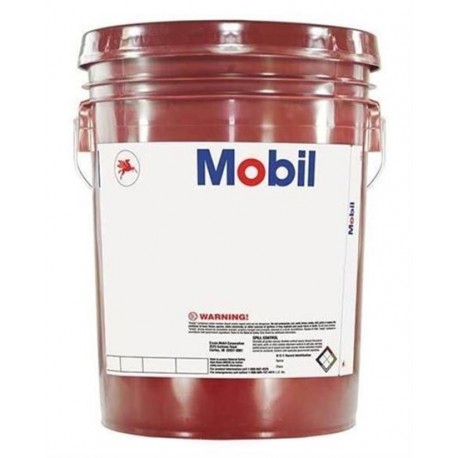

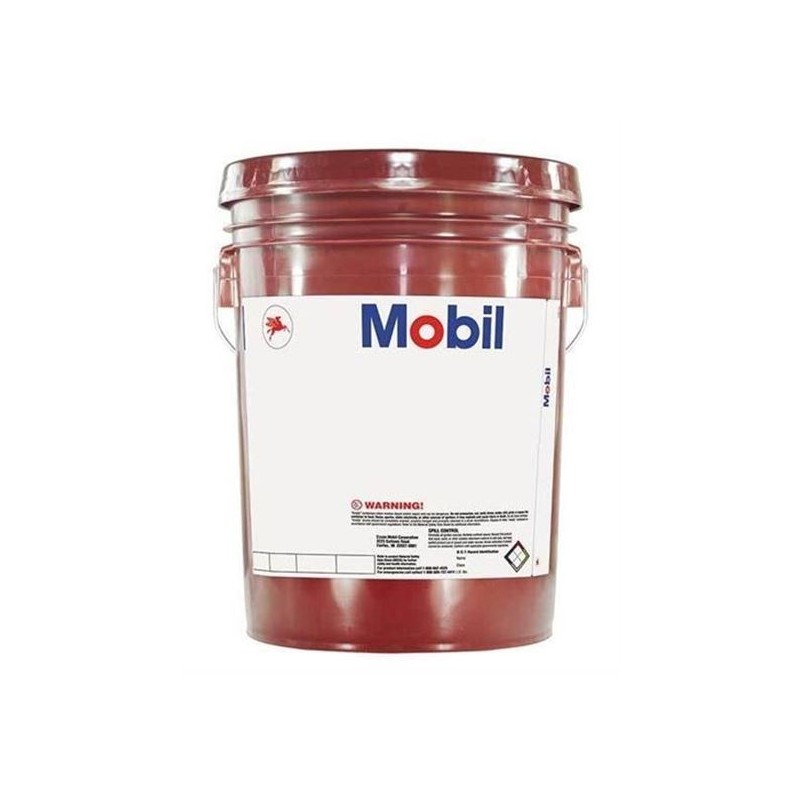

Mobilux EP 1 20L View larger

Mobilux EP 1 18Kg

New product

This product is no longer in stock

177,30 €

More info

Mobilux™ EP 0, 1, 2, 3, 004 and 023

View the  Mobilux EP Series

Grease

Product Description

Mobilux™ EP 0, 1, 2, 3, 004 and 023 products are a high performance family of four general-purpose industrial greases and two special-duty semi-fluid greases. These lithium hydroxystearate greases are formulated to provide extra protection against wear, rusting and water washout. They are available in NLGI grades ranging from 00 to 3, with base oil viscosities ISO VG 150 and 320.

Mobilux EP 0, 1, 2 and 3 greases are recommended for most types of industrial applications including heavy-duty applications where high unit pressures or shock loads are present. These greases provide excellent protection against rust and corrosion and resist water wash-out which makes them particularly suitable for equipment where moist or wet conditions are common. Mobilux EP 0 and 1 are suitable for centralised systems. Mobilux EP 2 and 3 are general-purpose greases. The recommended operating temperature range is from -20ºC to 130ºC but they may be used at higher temperatures if the lubrication frequency is increased accordingly.

Mobilux EP 004 and Mobilux EP 023 are particularly suitable for the lubrication of enclosed gears and bearings in poorly sealed gear cases they can also be used in many other industrial applications where conventional gear oils cannot be retained in gear cases, chain cases, etc. because of leakage due to worn or missing seals. The recommended operating temperature range is -20 to 120ºC for Mobilux EP 004 and -20 to 120ºC for Mobilux EP 023.



Features and Benefits

Mobilux EP greases have a long history of proven performance and have demonstrated good performance in the areas of corrosion protection, low temperature pumpability and high temperature service life. A Timken OK load of 40 lb illustrates their load carrying and extreme pressure capability.

  • Reduced wear under heavy or shock loading and vibration for good equipment reliability and availability
  • Protection against rust and corrosion and resistance to water washout for equipment protection and good lubrication even in presence of water
  • Extended bearing life potential in wet environments for reduced bearing costs and unanticipated downtime
  • Good pumpability in centralised systems (Mobilux EP 0 and 1)
  • Effective leakage control (Mobilux EP 004 and Mobilux EP 023)



Applications

  • Mobilux EP 0 and EP 1 provide good low temperature pumpability and are suitable for centralised lubrication systems and other applications where low temperature performance is required.
  • Mobilux EP 2 is recommended for multipurpose applications in antifriction and plain bearings, bushings and pins under normal operating conditions.
  • Mobilux EP 3 is a stiffer NLGI grade 3 grease recommended for applications where maximum protection against penetration of water or solid contaminants is required.
  • Mobilux EP 004 and Mobilux EP 023 are particularly suitable for the lubrication of enclosed gears and bearings in poorly sealed gear cases on most underground mining machinery with the exception of electric motor gearings. Mobilux EP 004 and Mobilux EP 023 can also be used in many other industrial applications where conventional gear oils cannot be retained in equipment such as gear cases, chain cases, because of leakage due to worn or missing seals. Mobilux EP 004 passes the SEW 1008 hour gear test requirement DR.EM.203 mod.



Specifications and Approvals

Mobilux EP meets or exceeds the requirements of: Mobilux EP 0 Mobilux EP 1 Mobilux EP 2 Mobilux EP 3 Mobilux EP 004 Mobilux EP 023
DIN 51825   KP1K-20 KP2K-20 KP3K-20
DIN 51826 GP0G-20       GP00G-20 GP000G-20



Mobilux EP has the following builder approvals Mobilux EP 0 Mobilux EP 1 Mobilux EP 2 Mobilux EP 3 Mobilux EP 004 Mobilux EP 023
SEW Eurodrive/ PS C Gears          X



Typical Properties

  Mobilux EP 0 Mobilux EP 1 Mobilux EP 2 Mobilux EP 3 Mobilux EP 004 Mobilux EP 023
NLGI Grade 0 1 2 3 00 000
Thickener Type Lithium Lithium Lithium Lithium Lithium Lithium
Color, Visual Brown Brown Brown Brown Brown Brown
Penetration, Worked, 25ºC, ASTM D 217 370 325 280 235 415 460
Viscosity of Oil, ASTM D 445
cSt @ 40ºC 160 160 160 160 160 320
Timken OK Load, ASTM D 2509, lb 40 40 40 40 40 40
4-Ball Wear, ASTM D 2266, Scar, mm 0.4 0.4 0.4 0.4 0.5 0.4
4-Ball Weld Load, ASTM D 2596, Kg 250 250 250 250 250 250
Dropping Point, D 2265, C 190 190 190 190
Rust Protection, ASTM D 6138, Distilled Water 0-0 0-0 0-0 0-0 0-0 0-0
