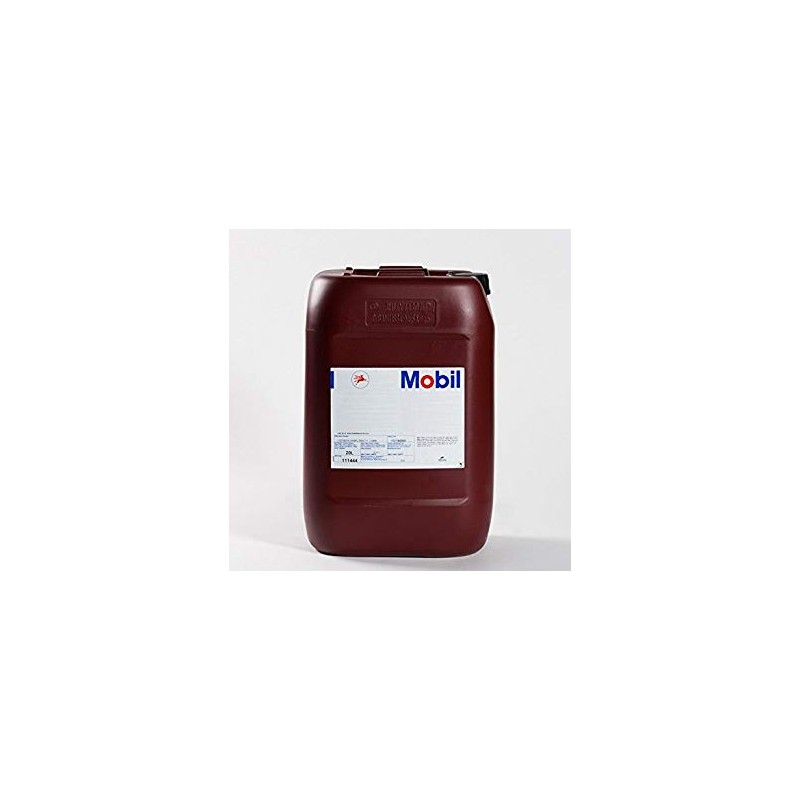

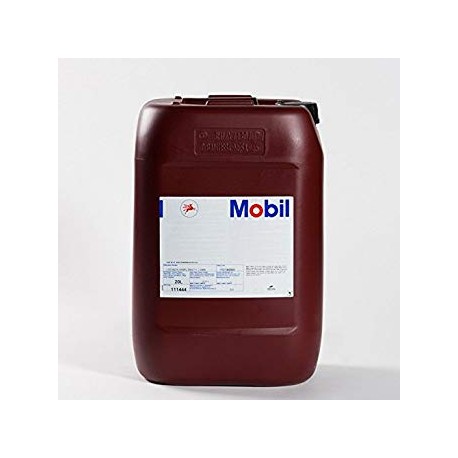

Mobil Nuto H 150 20L View larger

Mobil Nuto H 150 20L

New product

More info

Nuto™ H Series

Hydraulic Oils

Product Description

Nuto™ H Series oils are good quality anti-wear hydraulic oils intended for industrial and mobile service applications, subjected to moderate operating conditions and requiring anti-wear lubricants.

Their effective oxidation resistance and chemical stability support good oil life in moderate to severe applications.



Features and Benefits

  • Good anti-wear performance helps reduce pump wear and prolonging pump life
  • Corrosion protection helps reduce the effects of moisture on system components
  • Filterability to prevent filter blockage even in the presence of water



Applications

  • Systems using gear, vane, radial and axial piston pumps and those containing gears and bearings where mild anti-wear characteristics are required
  • Where hydraulic oil contamination or leakage is unavoidable
  • Where small amounts of water are unavoidable



Specifications and Approvals

 Nuto H Series meets or exceeds the requirements of: NUTO H 32 NUTO H 46 NUTO H 68 NUTO H 100 NUTO H 150
DIN 51524-2: 2006-09 X X X X
ISO L-HM (ISO 11158:1997) X X X X X



 Nuto H Series has the following builder approvals: NUTO H 32 NUTO H 46 NUTO H 68 NUTO H 100 NUTO H 150
DENISON HF-0 X X X



Typical Properties

  NUTO H 32 NUTO H 46 NUTO H 68 NUTO H 100 NUTO H 150
Viscosity, ASTM D445
   cSt @ 100°C 5.4 6.7 8.5 11.1 14.6
   cSt @ 40°C 32.0 46.0 68.0 100.0 150.0
Viscosity Index, ASTM D2270 104 104 107 95 95
Density 15ºC, ASTM D4052 0.872 0.876 0.882 0.884 0.887
Pour Point, °C, ASTM D97 -24 -24 -18 -18 -18
Flash Point, COC, °C, ASTM D92 212 226 234 242 258
Demulsibility @ 54°C, ASTM D1401 15 15 20
Demulsibility @ 82°C, ASTM D1401       10 5
Copper strip corrosion, 3 hrs @ 100°C, ASTM D130 1A 1A 1A 1A 1A
